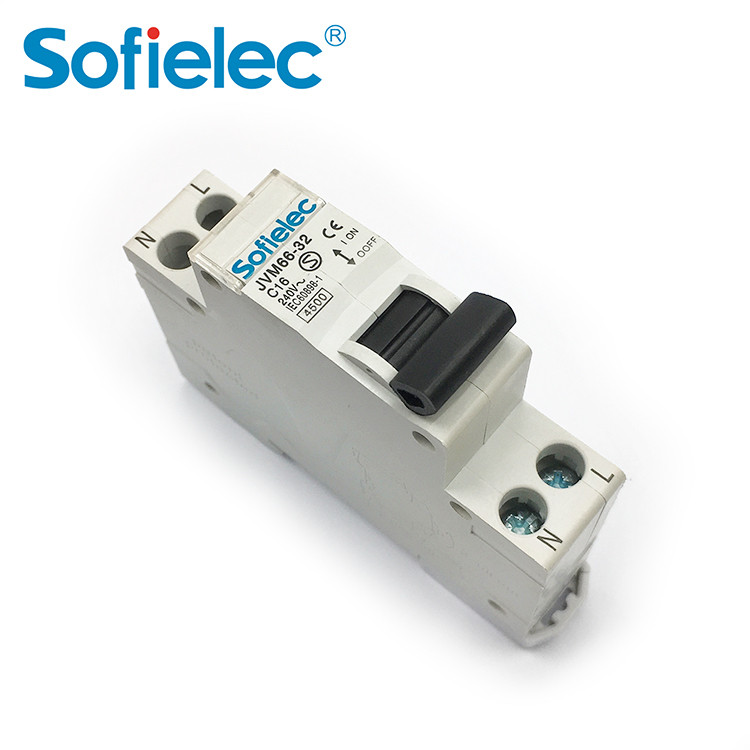

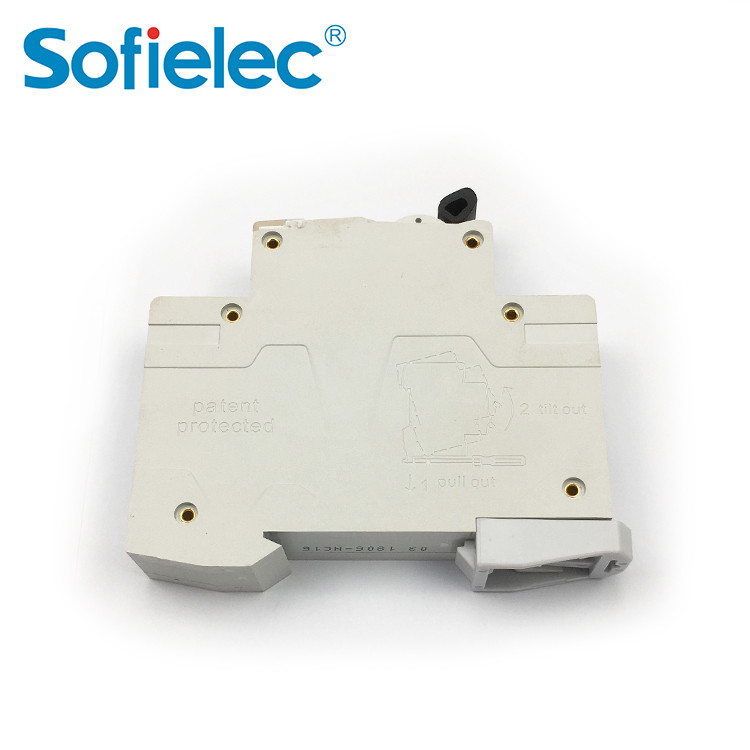

JVM66-32 series miniature circuit breaker is featured with high breaking capacity, elegant appearance, convenient installation, modularized dimension.

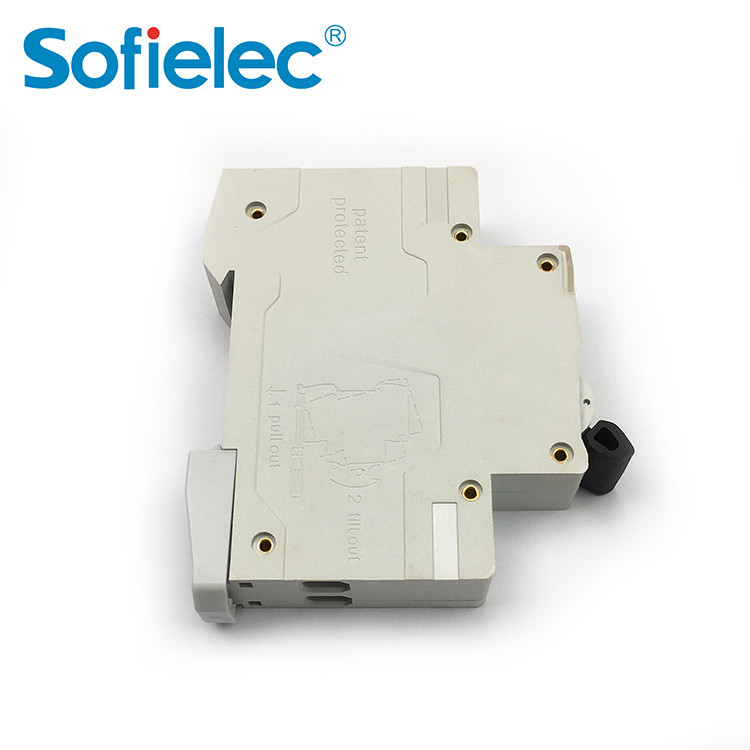

Construction and Feature

JVM66-32 series miniature circuit breaker is featured with high breaking capacity,

elegant appearance, convenient installation, modularized dimension.

Over-current characteristic of miniature circuit breaker cannot be changed by external

mechanical device, take suitable antirust measures for components that are made of

metal, the operating mechanism should be flexible and reliable, and should have free

tripping function, the operating parts can not be taken off from the outside of shell,

the product shell should not affect normal work of operating mechanism.

Technical Data

Model:JVM66-32

Pole No.:1P+N

Rated current(A):6, 10, 16, 20, 25, 32A

Rated working voltage:AC 240V

Rated frequency:50(60)Hz

Curve:B, C, D

High short-circuit breaking capacity:3000A

Instantaneous tripping current:5In (B type) 10In (C type) 20In (D type)

Instantaneous non-tripping current:3In (B type) 5In (C type) 10In (D type)

Mechanical life:Not less than 4000 times

Degree of protection:IP20

Terminal connection height: 21.5 mm

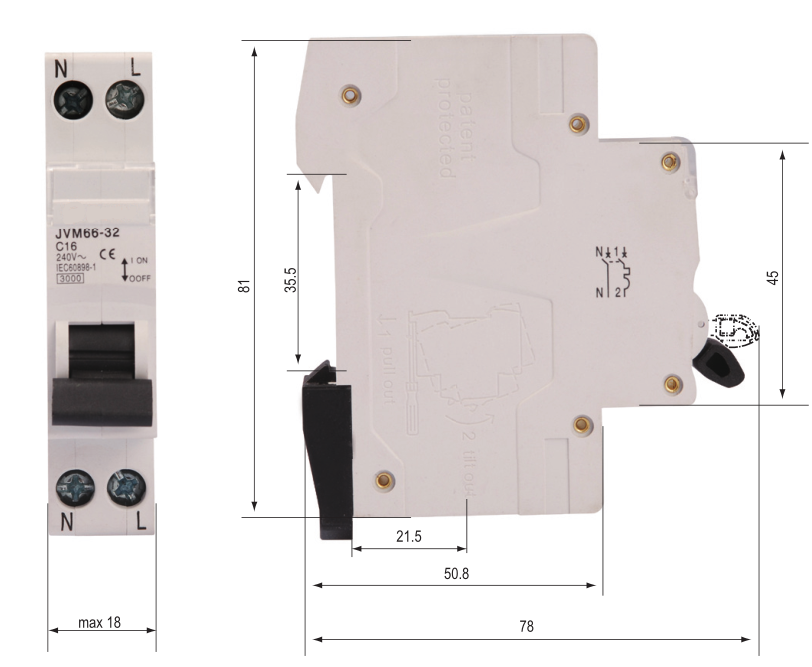

Overall & Installation Dimensions

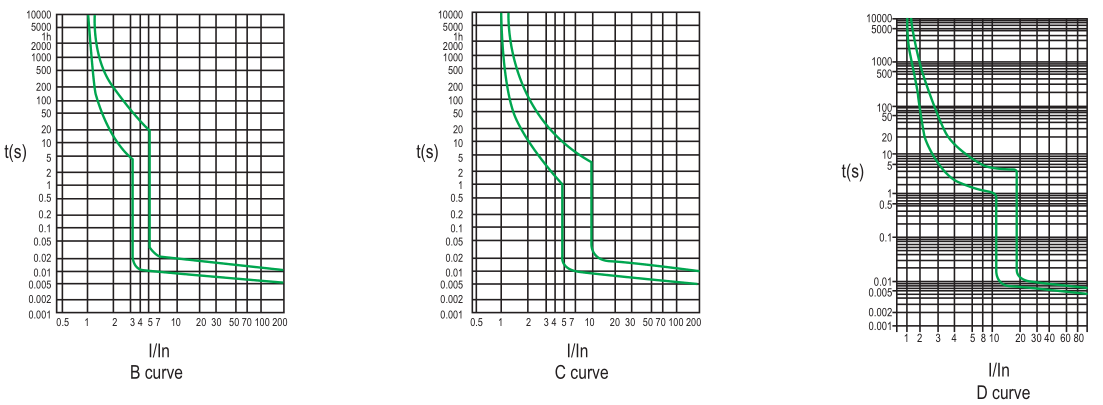

Characteristic Curve
