Summary

Sofielec Top sale starJVM8-63 6kA MCB factory price, fine and unique appearance advanced design

■Fine and unique appearance,advanced design

■Short-circuit and overload dual-protection performance

■High-breaking capacity (6KA ) that is leading among the world similar products

■Unique labels,Contact position indication window

■Convenient and reliable installation

Sofielec Top sale starJVM8-63 6kA MCB factory price, fine and unique appearance advanced design

Construction and Feature

■ Fine and unique appearance,advanced design

■ Short-circuit and overload dual-protection performance

■ High-breaking capacity (6KA ) that is leading among the world similar products

■ Unique labelsContact position indication window

■ Convenient and reliable installation

Technical Data

■ ModelJVM8-63

■ Pole No.1P. 2P. 3P, 4P

■ Rated current(A):6. 10. 16. 20, 25, 32, 40. 50, 63

■ Rated working voltage: 240/415V

■ Rated Frequency: 50/60Hz

■ Rated insulation voltage: 500V

■ Rated short-circuit capacity:6000A

■ Instantaneous tripping current:5ln(B type)10ln(C type)20ln(D type)

■ Instantaneous non-tripping current:3ln(B type)5ln(C type)10ln(D type)

■ Mechanical life: 15000 times

■ Degree of protection: IP20

■ Wiring connection mode: upward line

■ Connection conductor: 1~16mm2

■ Wiring Height:21.5mm

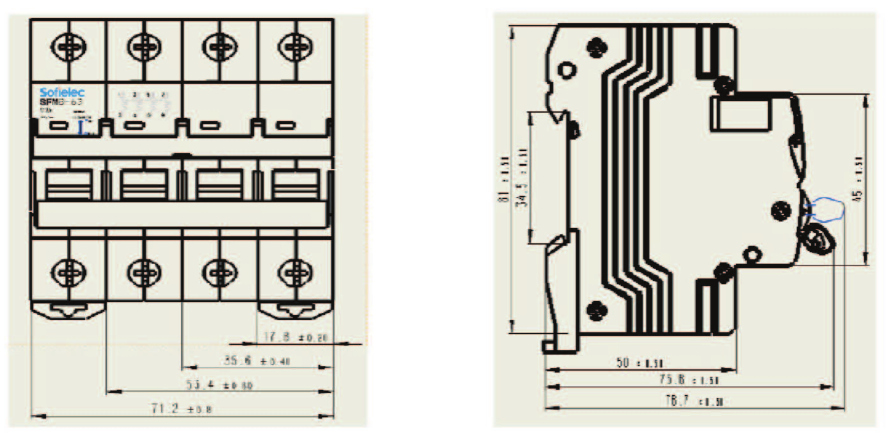

Overall &installation Dimensions

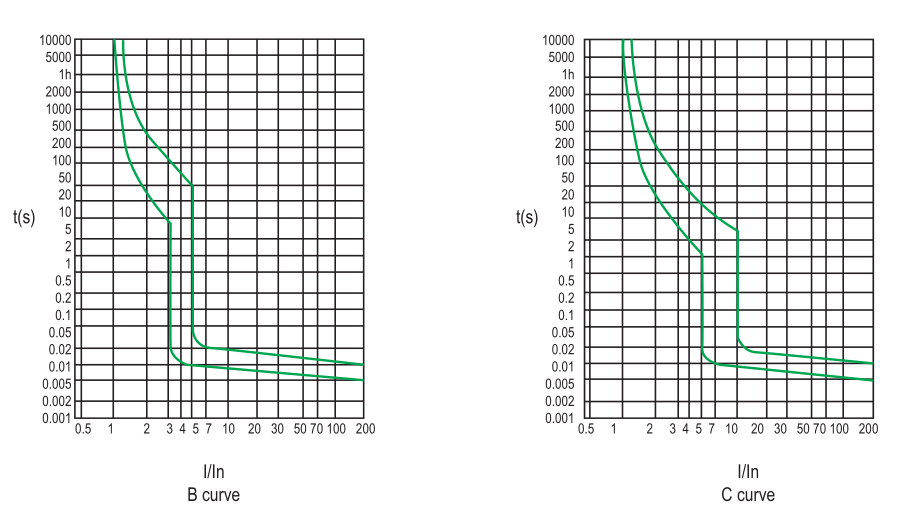

Characteristic Curve

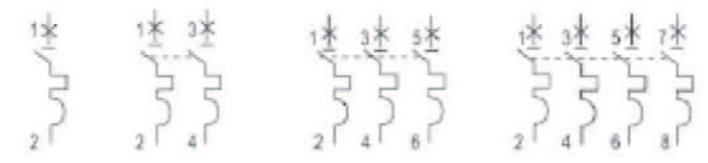

Wiring Diagram
