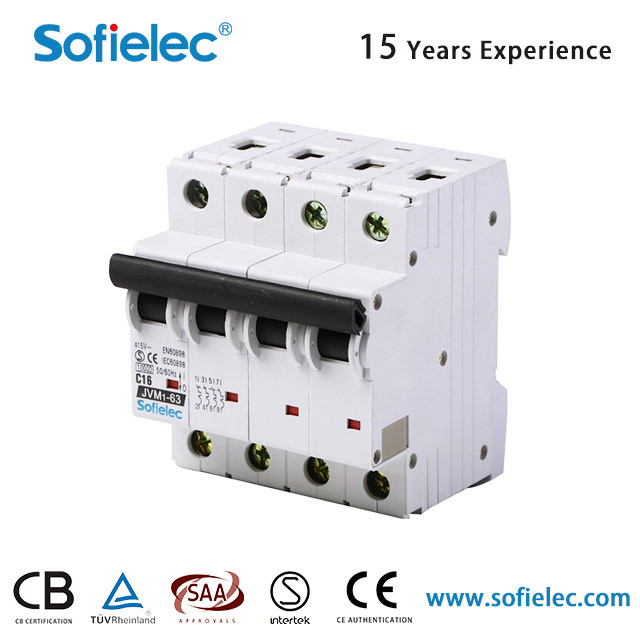

Sofielec 6-10kA MCB JVM1-63 4P 6-63A, IEC CB CE and RoHS certificate
- Share
- Issue Time
- 2019/08/08
Summary
Sofielec 6-10kA MCB JVM1-63 4P 6-63A, IEC CB CE and RoHS certificate
Protection against both overload and short circuit
High short-circuit capacity
Contact position indication
Applicable to terminal and pin/fork type busbar connection
Easy mounting onto 35mm DIN rail
Construction and Feature
Protection against both overload and short circuit
High short-circuit capacity
Contact position indication
Applicable to terminal and pin/fork type busbar connection
Easy mounting onto 35mm DIN rail
Technical Data
● PoleNo.: 1, 1P+N，2,3,3P+N，4
● Rated voltage: AC 230/400V
● Rated current (A): 1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63
● Tripping curve: B, C, D
● High short-circuit breaking capacity (lcn):10kA
● Rated frequency: 50/60Hz
● Energy limiting class: 3
● Rated impulse withstand voltage: 6.2kV
● Electromechanical endurance: 10000
● Contact position indication
● Connection terminal:
● Screw terminal
● Pillar terminal with clamp
● Connection capacity: Rigid conductor up to 25mm2
● Fastening torque: 2.0Nm
● Installation:
● On symmetrical DIN rail 35.5 mm
● Panel mounting
● Terminal Connection Height: 21mm
Overall & Installation Dimensions
Characteristic Curve
