The Modular Signal Lamp is Low service duration, minimum power consumption Compact design in modular size Easy installation
- Share
- Issue Time
- 2019/07/25
Summary
The Modular Signal Lamp is applicable to circuit with rated voltage 230V~ and
frequency 50/60Hz for visual indication and signaling.
Application
The Modular Signal Lamp is applicable to
circuit with rated voltage 230V~ and
frequency 50/60Hz for visual indication and
signaling.
Construction
and Feature
Low service duration, minimum power
consumption
Compact design in modular size
Easy installation
Technical
Data
Rated voltage: 230V AC
Rated frequency: 50/60Hz
Colour: red, green, yellow
Connection terminal: pillar terminal with
clamp
Connection capacity: rigid conductor 10mm 2
Installation:
On symmetrical DIN rail 35 mm
Panel mounting
Terminal Connection Height: H=19mm
Max power: 0.6W
Illumination: LED
Service duration: 30,000 hours

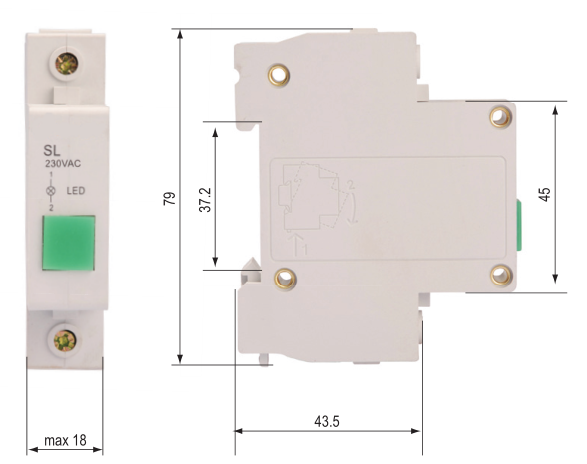

Overall & Installation
Dimensions 尺寸图
