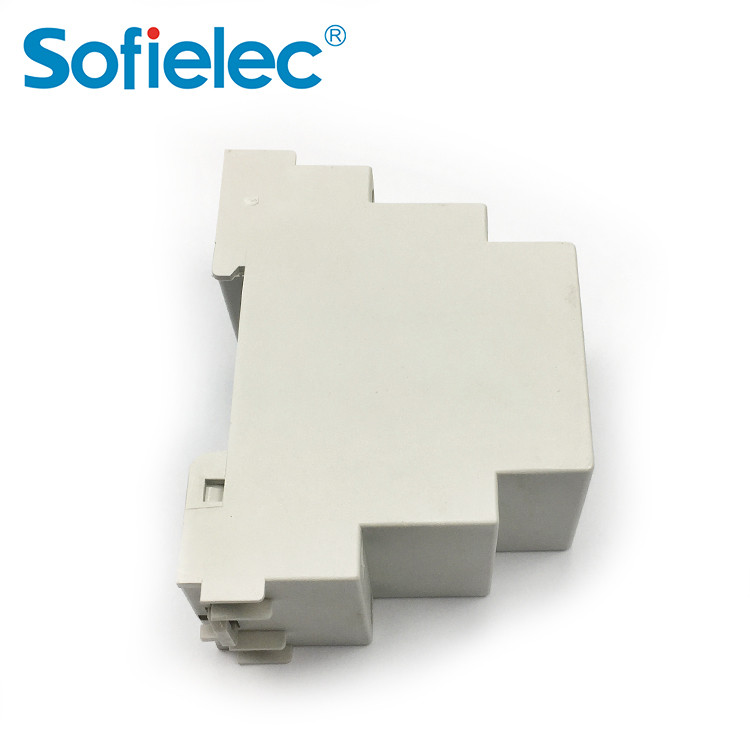

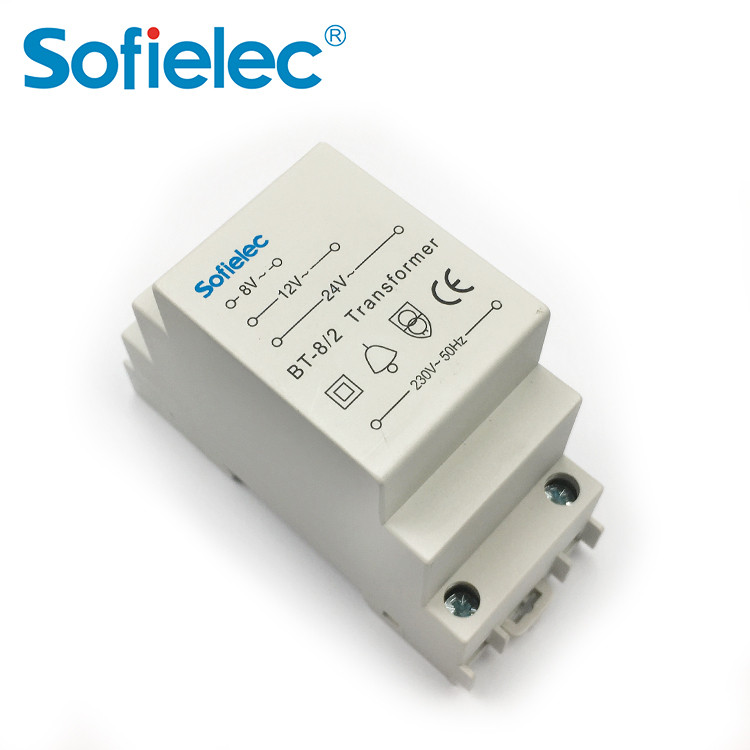

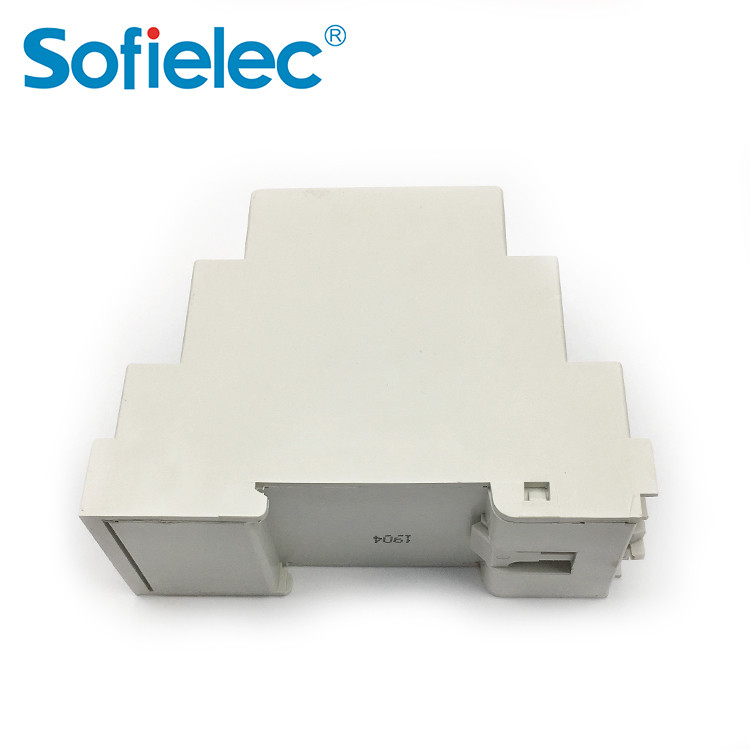

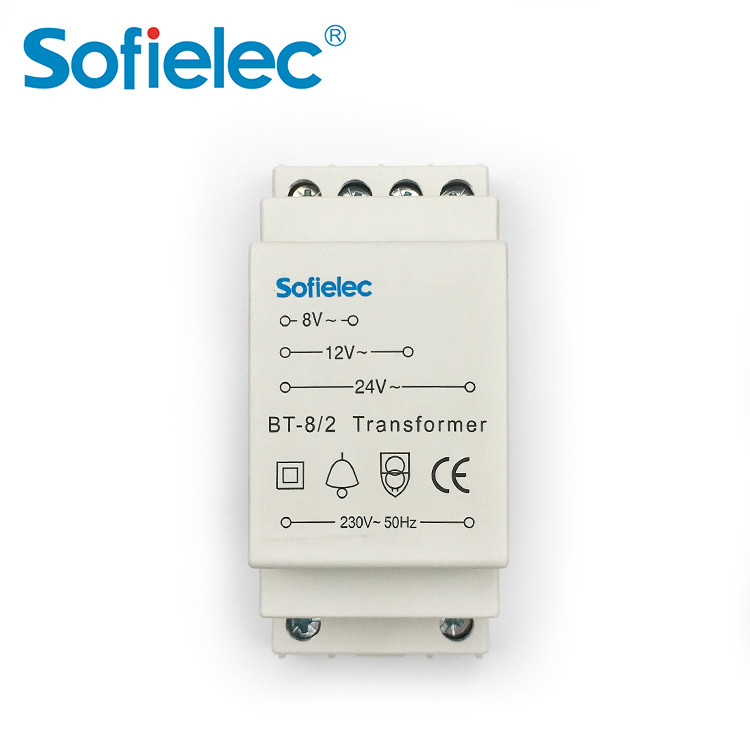

Sofielec Modular bell transformer 8VA, BT-8 CE approval applicable to circuit with rated voltage 230V~ and rated frequency 50/60Hz
- Share
- Issue Time
- Jul 23,2019
Summary
Applicable to circuit with rated voltage 230V~ and rated frequency 50/60Hz, used to
power electric bell of extra low voltage.
Construction
and Feature
Safe electrical separation between primary
and secondary circuit
Provides extra low voltage up to 24V
Low temperature rising
High output accuracy
Extra overload capacity up to 25% within 24
hours
Technical
Data
Rated input voltage: 230V AC
Rated output voltage:
BT16: 8, 12, 24V
BT8: 4, 6, 8, 12, 16, 24V
Rated frequency: 50/60Hz
Rated power output: 8VA
Consumption: 1.15W
Service period: continuous operating
Pollution class: 2
Connection terminals: pillar terminal with
clamp
Connection capacity: rigid conductor 10mm 2
Installation:
On symmetrical DIN rail 35mm
Panel mounting
Terminal Connection Height: H=15.5mm

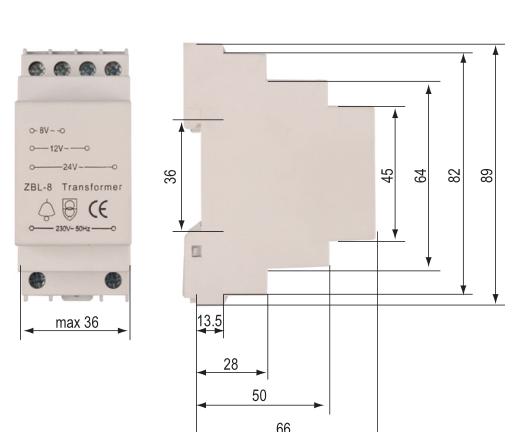

Overall
& Installation Dimensions 尺寸图
